Manufactured by Samhwa Mixing Tech, Korea
In-tank mixing by sucking surrounding liquid in vessel and ejecting pumped liquid

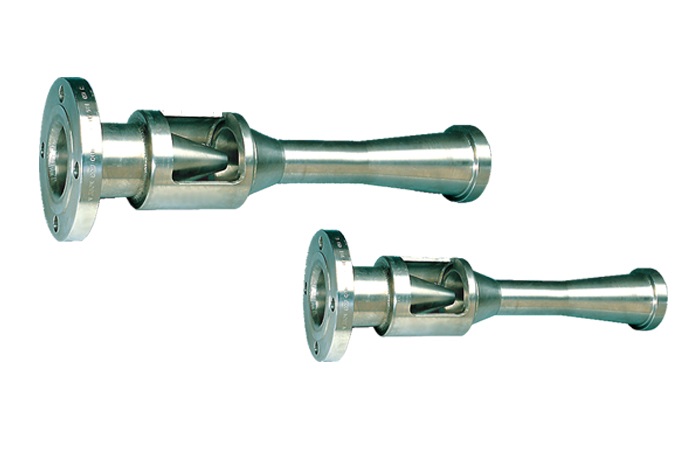

Liquid jet mixers are jet pumps to mix and circulate liquids. The range of applications for liquid jet mixers is only limited by the viscosity of the liquid to be mixed. As a rule, jet mixers can be used in all cases where the liquid to be mixed can still be supplied by a centrifugal pump.
Liquid jet mixers are mainly used in vessels, storage tanks and neutralization basins.

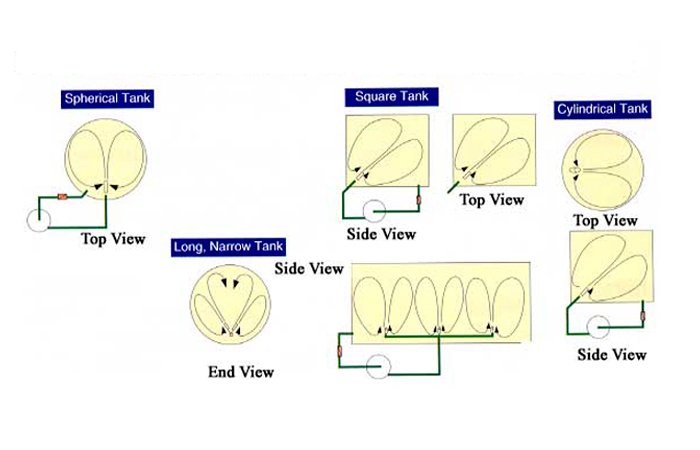

The liquid jet coming out of the motive nozzle generates a partial vacuum in the inlet cone of the diffuser, and therefore, a liquid flow is extracted from the tank and is entrained. The motive jet mixes with the entrained liquid and accelerates its flow. The liquid mixture emerging from the jet mixer spreads out in conical form and entrains more liquid from its surroundings. In addition the ejected liquid promotes further mixing by forming a swirling flow inside the vessel.
